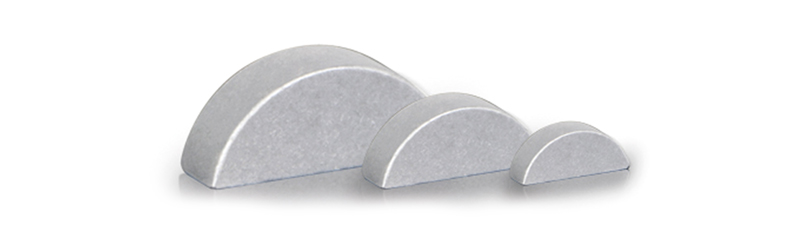

Disk / Woodruff keys

Disk / Woodruff keys

  • ma­de to DIN 6888 or SAE
  • avail­ab­le from stock
  • avail­ab­le in all ma­te­ri­als with/without heat tre­at­ment
  • cus­tom di­men­si­ons pos­si­ble

Disk / Woodruff keys

Disk / Woodruff keys

  • ma­de to DIN 6888 or SAE
  • avail­ab­le from stock
  • avail­ab­le in all ma­te­ri­als with/without heat tre­at­ment
  • cus­tom di­men­si­ons pos­si­ble

MORE FACTS ON OUR DISK / WOODRUFF KEYS

Tech­ni­cal drawing

Di­men­si­ons avail­ab­le to DIN 6888
Height h 1,40 — 16,00 mm
Length l 3,82 — 43,08 mm
Width w 1,00 — 10,00 mm

Cus­tom di­men­si­ons avail­ab­le

Di­men­si­ons avail­ab­le to SAE
Height h 0,203 — 0,641 inch
Length l 0,500 — 1,500 inch
Width b 0,625 — 0,375 inch

Disk keys are usual­ly used, as with par­al­lel keys for ta­per con­nec­tions, to fix the po­si­ti­on of shaft and hub. This form-lo­cking con­nec­tion is used to trans­mit tor­que, for ex­amp­le, from the dri­ve shaft to the ge­ar wheel. Disk keys are al­so re­fer­red to as Woo­d­ruff keys.

The disk key is load-bea­ring by vir­tue of its la­te­ral­ly tight fit. It the­re­fo­re acts as a dri­ver and trans­mits the tor­que of the shaft to the com­po­nent to be dri­ven (dri­ve shaft) or the tor­que of the dri­ving com­po­nent to the shaft to be dri­ven (out­put shaft). The wheel on the ge­ne­ral­ly ta­pe­red shaft is se­cu­red axi­al­ly against dis­pla­ce­ment by a lock nut.

The stan­dards for disk keys by pat­tern and di­men­si­ons are set by DIN 6888. For the to­le­ran­ce of the slot width, a fit with P9 for a tight se­at or N9 for a light se­at are usual­ly used in ac­cordance with DIN 7155. The width of the disk key is the­re­fo­re equi­va­lent to a to­le­ran­ce h9 (lower de­via­ti­on = 0). The height of the disk is to­le­ra­ted to h12. De­sign and cal­cu­la­ti­on gui­de­li­nes for ma­chi­ne key con­nec­tions are set out in DIN 6892.

Plea­se com­ple­te the form be­low and we will help you as quick­ly as pos­si­ble. The form is al­so avail­ab­le as a pdf file to down­load, com­ple­te and fax to us. Down­load PDF

Key In­for­ma­ti­on Re­qui­red



Your De­tails

*Man­da­to­ry fiel­ds

Tech­ni­cal drawing


Di­men­si­ons avail­ab­le to DIN 6888

Height h
1,40 — 16,00 mm

Length l
3,82 — 43,08 mm

Width w
1,00 — 10,00 mm

Cus­to­mer di­men­si­ons avail­ab­le on agree­ment.

Di­men­si­ons avail­ab­le to SAE

Height h
0,203 — 0,641 inch

Length l
0,500 — 1,500 inch

Width w
0,625 — 0,375 inch

Disk keys are usual­ly used, as with par­al­lel keys for ta­per con­nec­tions, to fix the po­si­ti­on of shaft and hub. This form-lo­cking con­nec­tion is used to trans­mit tor­que, for ex­amp­le, from the dri­ve shaft to the ge­ar wheel. Disk keys are al­so re­fer­red to as Woo­d­ruff keys.

The disk key is load-bea­ring by vir­tue of its la­te­ral­ly tight fit. It the­re­fo­re acts as a dri­ver and trans­mits the tor­que of the shaft to the com­po­nent to be dri­ven (dri­ve shaft) or the tor­que of the dri­ving com­po­nent to the shaft to be dri­ven (out­put shaft). The wheel on the ge­ne­ral­ly ta­pe­red shaft is se­cu­red axi­al­ly against dis­pla­ce­ment by a lock nut.

The stan­dards for disk keys by pat­tern and di­men­si­ons are set by DIN 6888. For the to­le­ran­ce of the slot width, a fit with P9 for a tight se­at or N9 for a light se­at are usual­ly used in ac­cordance with DIN 7155. The width of the disk key is the­re­fo­re equi­va­lent to a to­le­ran­ce h9 (lower de­via­ti­on = 0). The height of the disk is to­le­ra­ted to h12. De­sign and cal­cu­la­ti­on gui­de­li­nes for ma­chi­ne key con­nec­tions are set out in DIN 6892.

Plea­se com­ple­te the form be­low and we will help you as quick­ly as pos­si­ble. The form is al­so avail­ab­le as a pdf file to down­load, com­ple­te and fax to us. Down­load PDF

Key In­for­ma­ti­on Re­qui­red

Your De­tails

*Man­da­to­ry fiel­ds
